Taegutec ZNMV 141008-BS TT3020

Product Code: 6324613

$43.07$39.15 Ex. GST

Product Code: 6324613 SKU 6324613 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

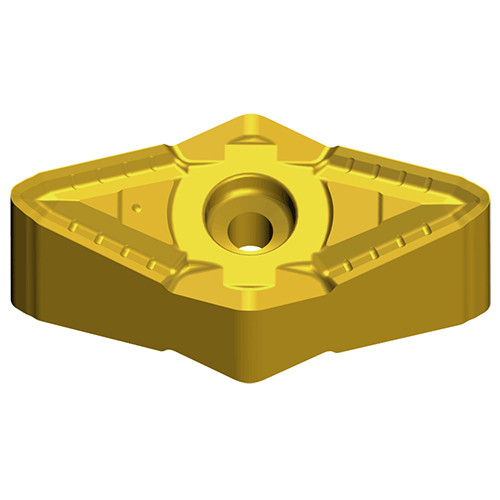

Double-sided positive 4 corner inserts with 80° corner angle for all directional & high feed turning of super alloys

Weight	0.0163 kg
barcode
Additional Information	Applicable Material:, Super-Alloys / Titanium, Grade: TT3020 Application:, Ext23(BWT)&95(FWT) 45°Diamond, High Feed & All directional Turning, Inserts, Min D.O.C.: 0.5 mm Corner Radius (RE): 0.8 mm Depth of Cut Maximum (APMX): 2.5 mm Cutting Edge Length (L): 14.84 mm Min. Turning Feed (ft(min)): 0.5 mm/rev Insert Thickness (S): 10 mm Max. Turning Feed (ft(max)): 1 mm/rev Inscribed Circle Diameter (IC): 10.5 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: AlTiN+TiN Unit: M
