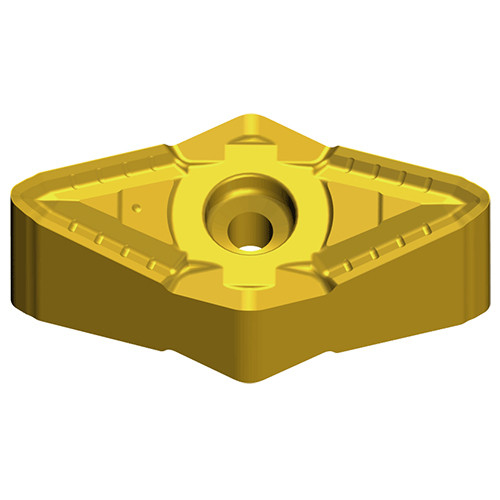

Double-sided positive 4 corner inserts with 80° corner angle for all directional & high feed turning of super alloys
Additional information
Weight
0.0374 kg
barcode
Additional Information
Applicable Material:, Steel, Grade: TT8125B
Application:, Ext23(BWT)&95(FWT) 45°Diamond, High Feed & All directional Turning, Inserts, Min D.O.C.: 0.5 mm
Corner Radius (RE): 0.8 mm
Depth of Cut Maximum (APMX): 2.5 mm
Cutting Edge Length (L): 14.84 mm
Min. Turning Feed (ft(min)): 0.5 mm/rev
Insert Thickness (S): 10 mm
Max. Turning Feed (ft(max)): 1 mm/rev
Inscribed Circle Diameter (IC): 10.5 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: TiCN+Al2O3+TiN
Unit: M
