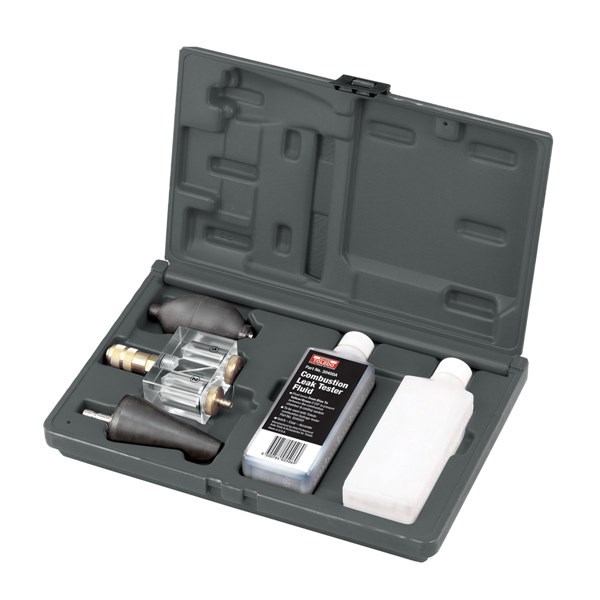

TOLEDO COMBUSTION LEAK TEST KIT

Comments: Compatible with Toledo cooling system testers 308550 & 308551
Description – Short: Diagnose cylinder head and gasket leaks by detecting the presence of combustion gases in the cooling system
universal cone adaptor suitable for most vehicles
Includes 250ml detector fluid
Supplied in storage case
User guide included
Instructions: Step 1:
Drain a small amount of fluid from the radiator. Reservoir bottle can be used for storage. This step is used to aid in the following steps

Step 2:
Open cap of chamber 2 and fill it half way with the supplied blue test fluid

Step 3:
Install & connect rubber bulb to chamber 2. Connect the adaptor (universal tapered adaptor/vehicle specific adaptor) to the quick connect fitting. Install assembled unit into the radiator neck

Step 4:
With the assembled unit located in position, start the engine. The resultant steam will travel up into chamber 1. While the engine is running, pump the rubber bulb several times to create a vacuum to suck the steam into chamber 2. Pump several times & review the colour of the fluid in chamber 3. If it remains blue, it means there is no evidence of CO2 exhaust emissions & no leak exists. If the fluid turns from blue to green or yellow there is proof there is CO2 present in the cooling system & a leak exists.

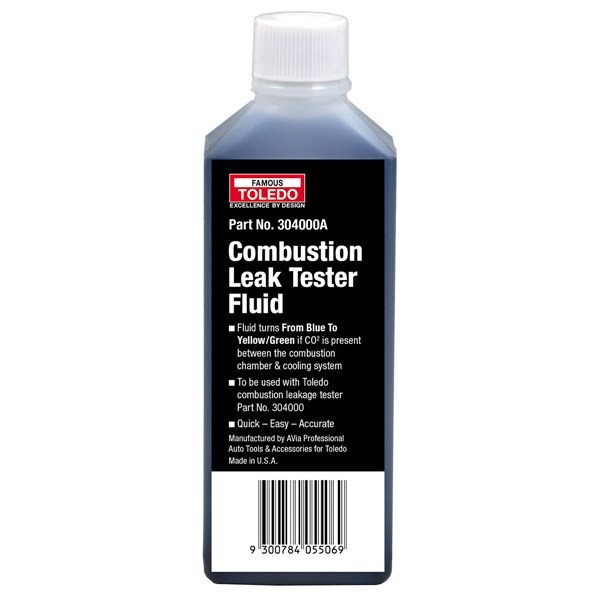

Spares: 304000A │ Replacement Detector Fluid
