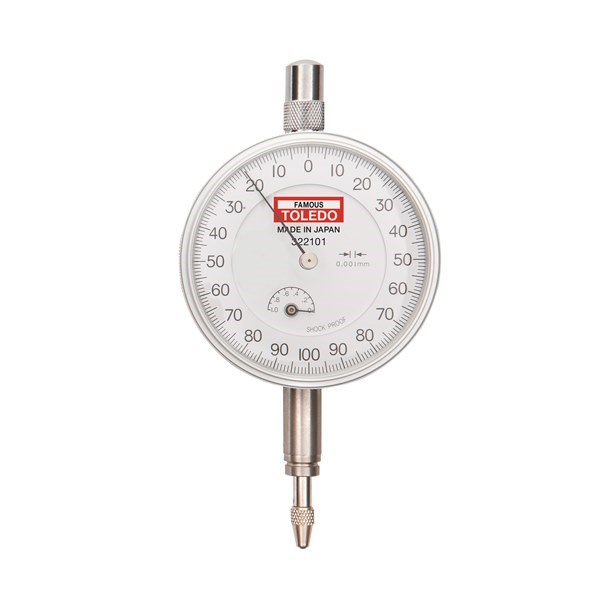

TOLEDO DIAL INDICATOR ANALOGUE 0.001X1MM

Product Code: 322101

$363.08$330.07 Ex. GST

Product Code: 322101 SKU 322101 Category

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

High precision expert dial gauges for precision measuring work
Dial face with O-ring and internal housing sealing ensures unit is waterproof and dustproof
Shock-proof mechanism prevents damage to the internal gears if the spindle is pushed abruptly
Hardened SK quenched steel stem with specialty fastening to eliminate failure
Superior quality spindle rack, pinions and gear trains ensure longevity
Easy read design incorporates white dial face with black graduations and pointer needle
Knurled Bezel provides a firm and secure grip
Securely fitted back cover with four locking screws enables lug to rotate at 90° angles
Manufactured to JIS B 7503

Additional information

Weight 0.0000 kg
barcode

9300784058091

Additional Information

Specifications: â–  Type: Metric
â–  Graduation Range: 0.001 x 1mm
â–  Reading: 0 – 100 – 0
â–  Indication Error:
1/10 Revolution – 2μm
1/2 Revolution – ±2μm
One Revolution – ±3μm
Two Revolution – ±13μm
Full Measuring Range – ±3μm
■ Retrace Error: 2μm
■ Repeatability: 0.5μm
â–  Measuring Force: < 1.5N

Brand

TOLEDO
