TOLEDO TORQUE MULTIPLIER

Product Code: 321009

$722.22$656.56 Ex. GST

Product Code: 321009 SKU 321009 Category

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Professional tool designed for use in applications where a higher than otherwise achievable torque rating is required due to limitations of space or operator strength
Multiplication ratio of 3 to 1 with planetary gear design
Ideal for breaking difficult or frozen fastener applications
Head assembly features 1/2” square drive (female) for use with torque wrench, ratchet, breaker bar or power drive etc. and 3/4” square drive (male) for use with sockets

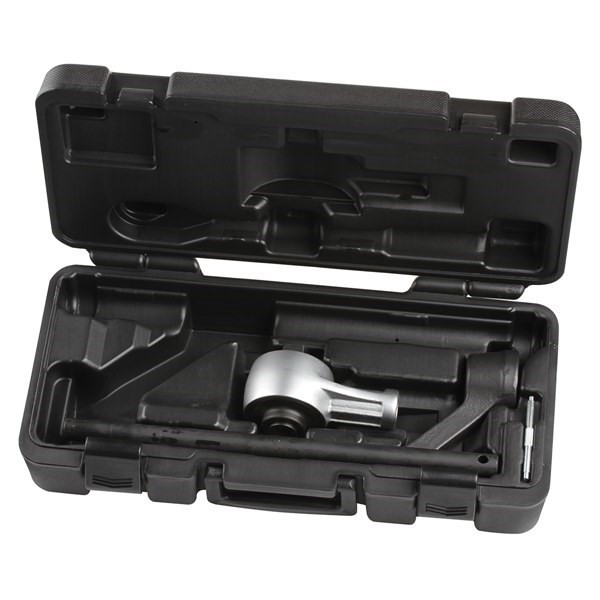

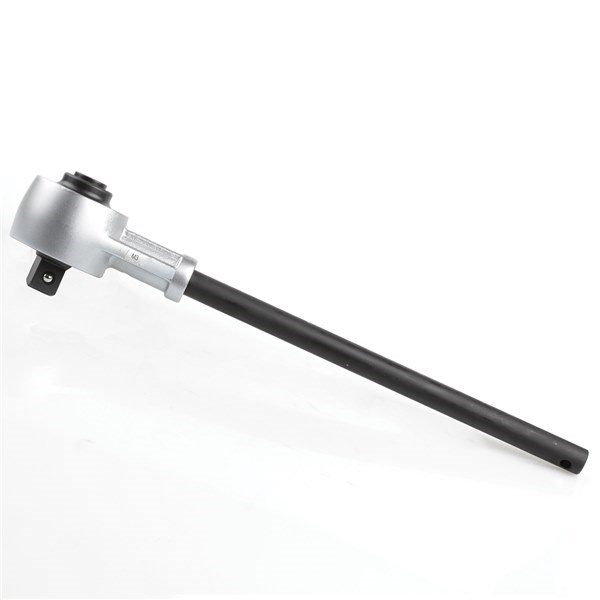

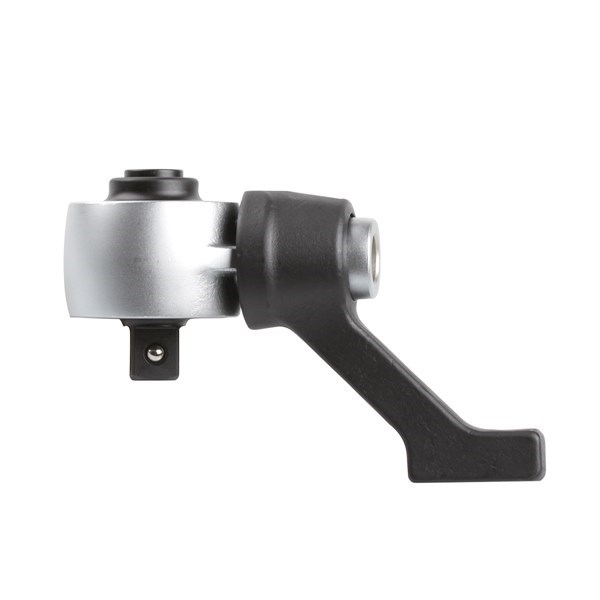

Extension bar and stabiliser also included
User guide included

Additional information

Weight 1.6000 kg
barcode

9300784050873

Additional Information

Specifications: ►Multiplication Ratio 3:1

►Input Square 1/2” Sq. Dr.

►Max. Input 500Nm (365 Ft. Lbs)

►Output Square 3/4” Sq. Dr.

►Max. Output 1,500Nm (1,100 Ft. Lbs)

►Accuracy +/– 4%

►Dimensions A: 73mm B: 127mm C: 10mm D: 25mm E: 83mm

►Weight 1,600g

Brand

TOLEDO
