TOLEDO VALVE SPRING COMPRESSOR TOOL

Product Code: 301486

$231.81$210.74 Ex. GST

Product Code: 301486 SKU 301486 Category

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

For use in the removal and servicing of engine valves and seals during cylinder head or engine repair
Suitable for use on a wide range of OHC, OHV, CVH valve applications
Available in various cam lock lever designs featuring adjustable capacity, locked and reversible jaws
Cam design enables servicing or repairs without cylinder head removal
Premium quality steel construction ensures safe operation and tool longevity
Enables removal and replacement of valve stem oil seals and valve spring eliminating cylinder head removal

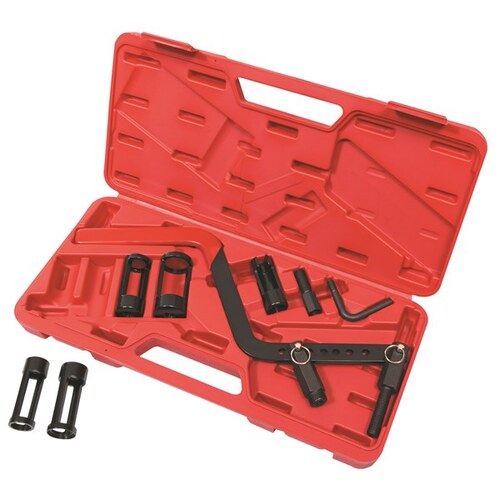

Universal kit features multi hole adjustable handle and interchangeable valve spring adaptors to enable unlimited setting combinations
Collet sizes: 19–24mm, 19.2–25.5mm, 19.2–26mm, 27.5–33.5mm and one universal adaptor

Additional information

Weight 0.0000 kg
barcode

9300784047972

Additional Information

Description – Short: Universal valve spring compressor eliminates cylinder head removal when replacing valve stem seals, valve springs and collets
Adjustable handle and interchangeable adaptors
Collet sizes: 19–24mm, 19.2–25.5mm, 19.2–26mm, 27.5–33.5mm

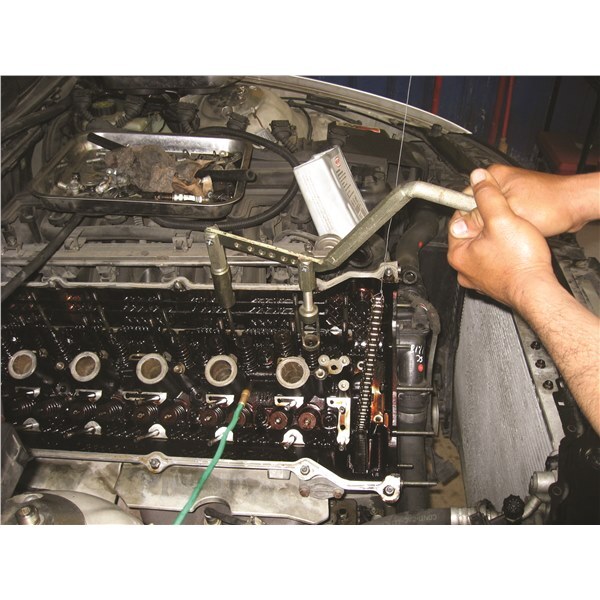

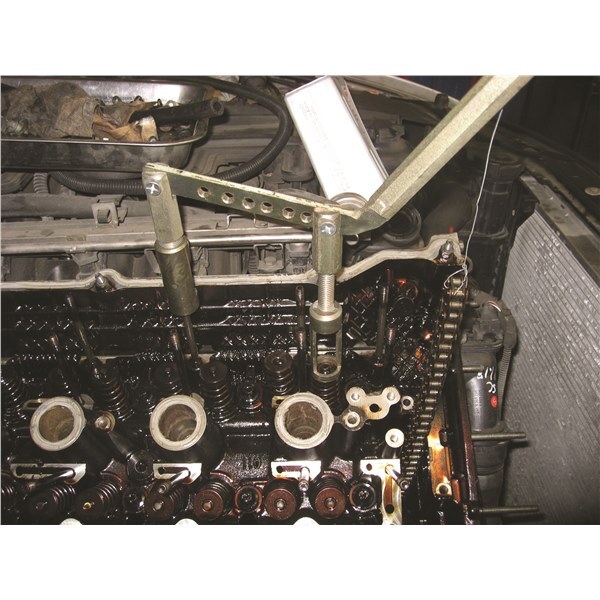

Instructions: Step 1:
Mount the adaptor to a fixed location on the cylinder head

Step 2:
Select the suitable adaptor compatible with the valve retainer and install to the tool main rod

Step 3:
Position the tool main rod above the valve spring to be removed using the correct adjustment hole on the pivot arm

Step 4:
Using the tool lever arm depress the valve spring as required

Brand

TOLEDO
