$2,269.00$2,062.73 Ex. GST

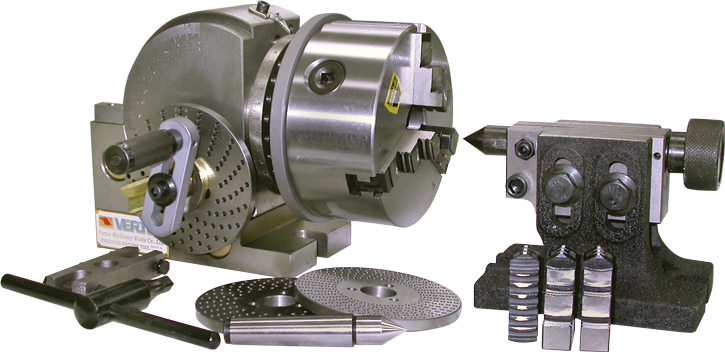

• Features: Dividing Head and Indexing • Dividing head can divide in any angle by the direct, indirect or difference methods. The ratio between the worm and worm gear is 40:1 • Hardened and ground spindle is rigidly held in a taper roller bearing. Worm is hardened and ground • The swivel head can be locked in any angle from 10º below horizontal to 90º vertical Precision fitting to base assures smooth rotation • All models have a threaded spindle nose and 24 hole dividing plate with easy conversion to fast direct indexing on numbers 2,3,4,6,8,12 and 24 • Easy indexing of all numbers from 2 to 50 and many numbers from 52 to 380 • Accurate precision, minimal backlash, fine appearance and strong construction to assure smooth operation Semi universal dividing head Complete with fitted 6″ chuck Dividing Plates – A: 15,16,17,18,19,20 B: 21,23,27,29,31,33 C: 37,39,41,43,47,49 Height: 220 mm Taper: MT3 Spindle through hole: 20 mm
| Weight | 45.0000 kg |
|---|---|
| barcode | 9.34697E+12 |
| Additional Information |
