$883.93$803.57 Ex. GST

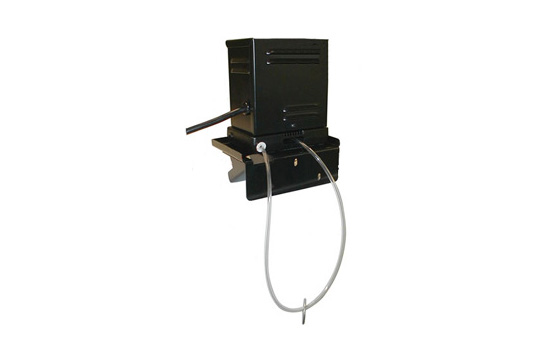

Tube Sidewinder – 240VAC
The Zebra (USA) Sidewinder removes oil from the tightest places, even off the floor.It can snake around corners, enter through narrow slits, and be moved from machine to machine in a minutes. The Sidewinder, also known as Tube Skimmer can be fitted with the optional Diverter to reduce wasted coolant.
Fits almost anywhere , just a ssimple O Ring to collect tramp oil.
Even fits in a manual turret mill!!
** Add a divertor box –
(CODE ; ZBGST4) to efficiantly sepeate tramp oil & good coolant back to your CNC machine.
Features include;
Compact and versatile design
Simple to install
Skims hard-to-access or enclosed sumps
Rated at 1 litre per hour
Skims underneath conveyors
Skims across elongated surface areas
Industrial-grade oil pick up tubing
Ceramic scraper wipes tube clean
| Weight | 4.0000 kg |
|---|---|
| Dimensions | Length 50cm x Width 35cm x Depth 30cm |
| barcode | |
| Additional Information | All Sidewinder units with the -08 suffix have an 200mm (8 inch) reach (discharge from mounting point to tube end). Longer reaches are also available up to 2,400mm (95 inches) in 75mm (3 inch) increments.Sidewinders requires access of 12mm (1/2 inch) by 75mm (3 inches) either horizontally or vertically. Maximum temperature for the tubing is ambient (no more than 30°C). |
