0 – 3mm KEY CHUCK Complete with SRING ARBOR Ideal pin chuck , can hand feed & “feel” & load the 1mm drill to feel the job.

Product Code: 3MMKEYCHUCK-AS1/2-J0

$152.90$139.00 Ex. GST

Product Code: 3MMKEYCHUCK-AS1/2-J0 SKU 3MMKEYCHUCK-AS1/2-J0 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Stop breaking tiny drills…

Designed for hand feel drilling with small jobber drills ranging from 0.5mm to 3mm. The arbor is held in a chuck or collet chuck in a drill or mill. (or even a lathe). Turn the speed on.

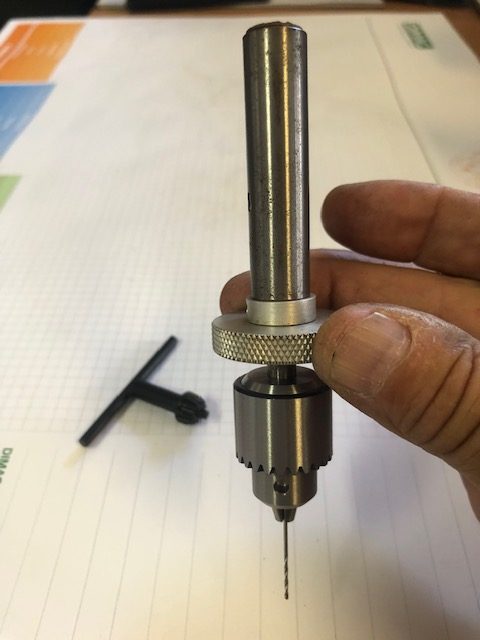

Then hold the knurled bearing collar, slowly feed the drill bit down as required. Under full control & feel.

Additional information

Weight 0.5000 kg
Dimensions Length 10cm x Width 4cm x Depth 4cm
barcode
Additional Information

Overview: Sensitive drill feed designed for drilling small holes combined with a 0"-1/8" (3 mm) capacity keyless drill chuck. To use the sensitive drill feed, grasp the knurled ring and pull it down to feed the drill into the workpiece. The internal spring retracts the drill when the ring is released. No chuck key required. Great for drilling small holes. It virtually eliminates broken drill bits because it gives you much better feedback than a drill press or milling machine.

Brand

MILLERS TOOLING
