Guhring Metric M10 x 1.5 Gun Nose Tap HSS-e-PM Blue Band For Thru holes Made in Germany

Product Code: 5559 10,000

$84.37$76.70 Ex. GST

Product Code: 5559 10,000 SKU 5559 10,000 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Enhance your precision and efficiency with the Guhring Metric Blue Ring Gun Nose Taps. The steam tempered design increases durability and longevity, providing a reliable tool to conquer any task. Elevate your workmanship and achieve superior results!

Gun Nose taps are primary for machine tapping & Ideal for through holes.

HSS APPLICATIONS

Primary for machine tapping
Ideal for through holes as the tap pushes the swarf forwards
Great for cutting new threads
Suited for use in a variety of ferrous and non-ferrous materials
Blue Ring for cutting – Stainless and acid resistant steels, Austentic, Marttensitic

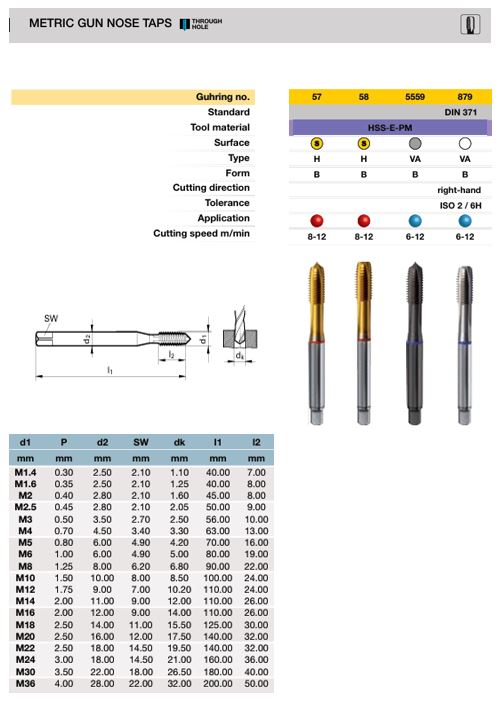

HSS TECHNICAL DATA

Made from High Speed Steel
Standard – DIN 371
Tolerance – ISO2 / 6H
Surface – Steam Tempered
Guhring No. 5559

Additional information

Weight 0.0530 kg
Dimensions
barcode
Additional Information

Connection code machine side: straight shank
Internal cooling: without
Norm: DIN 371
Surface: steam tempered
Discount group: 156
Type: 5559
Cutting direction: right-hand
Type: VA
Material: HSS-E-PM
Additional information: Internal threading
Form: B
Coloured ring: blue ring
Threads: M
Tolerance class thread: ISO2/6H
Hole type: through hole
Groove: straight-fluted cutting edges
Chamfer lead length: 3.5-5.5
Code no.: 10.000
Weight: 0.053
No of cutting edges: 3
Total length: 100.000
Thread length: 20.000
Groove length: 35.000
Usable length: 39.000
Norm 2: DIN 2184-1
Wrench opening 1: 8.000
Neck Ø: 8.100
Core hole Ø: 8.50
Shank Ø: 10.000
Nominal dimension thread: M10
Pitch: 1.500
External Ø: 10.070
Reach length: 77.000
Statistical goods number: 82074010
