Guhring Metric Fine M6 x 0.75 Spiral Flute Tap HSS-e Blue Band For Blind holes Made in Germany

Product Code: 2864 6,004

$126.92$115.38 Ex. GST

Product Code: 2864 6,004 SKU 2864 6,004 Categories , ,
Guhring Metric Fine M6 x 0.75 Spiral Flute Tap HSS-e Blue Band For Blind holes Made in Germany

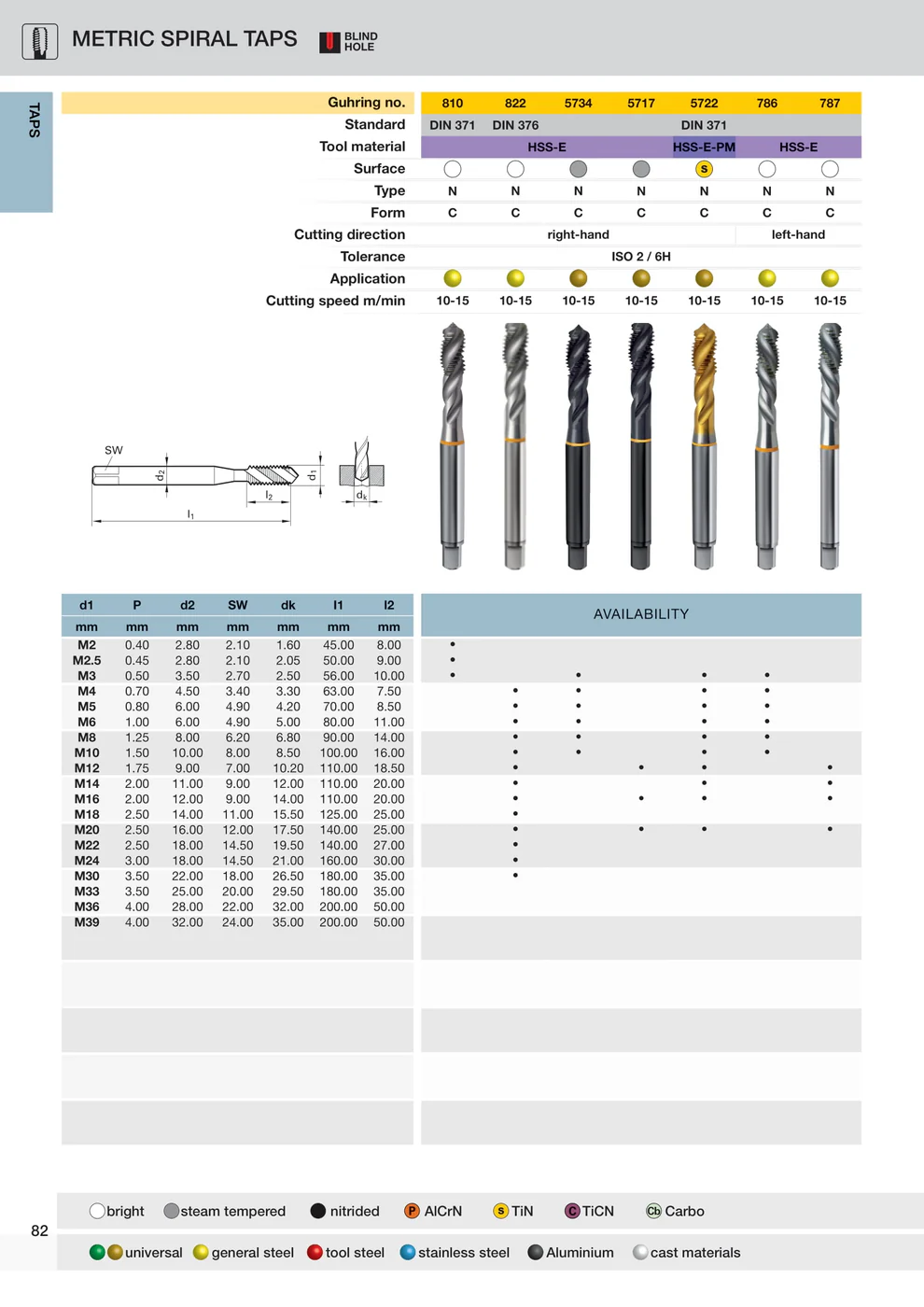

Guhring Metric Fine M6 x 0.75 Spiral Flute Tap HSS-e Blue Band For Blind holes Made in Germany - Image 2

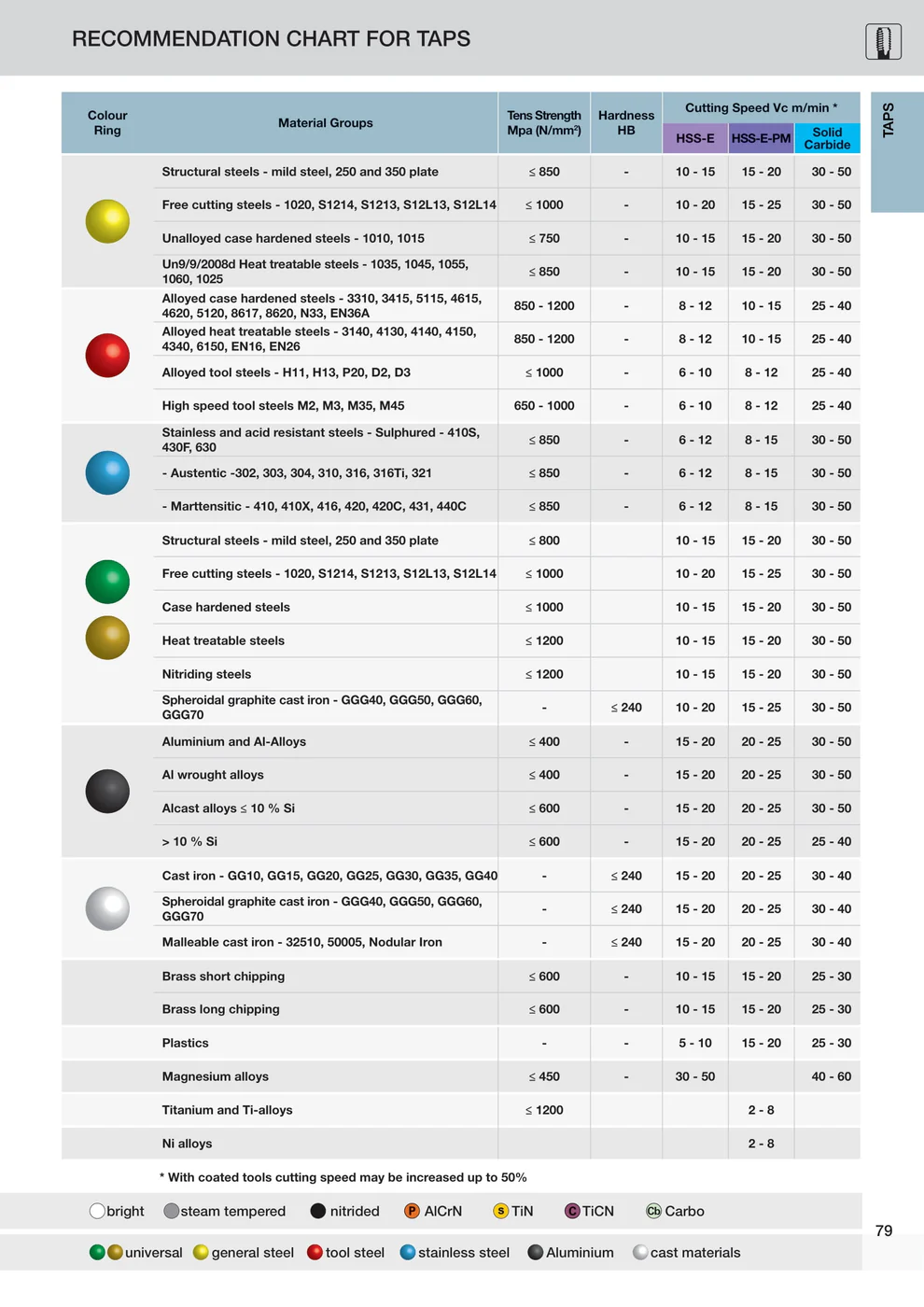

Guhring Metric Fine M6 x 0.75 Spiral Flute Tap HSS-e Blue Band For Blind holes Made in Germany - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Enhance your precision and efficiency with the Guhring Metric Fine Blue Ring Spiral Flute Taps. The steam tempered design increases durability and longevity, providing a reliable tool to conquer any task. Elevate your workmanship and achieve superior results!

Spiral flute taps are primary for machine tapping & Ideal for blind holes.

HSS APPLICATIONS

Primary for machine tapping
Ideal for blind holes
Great for cutting new threads
Suited for use in a variety of ferrous and non-ferrous materials
Blue Ring for cutting – Stainless and acid resistant steels, Austentic, Marttensitic
HSS TECHNICAL DATA

Made from High Speed Steel
Standard – DIN 374
Tolerance – ISO2 / 6H
Surface – Steam Tempered
Guhring No. 2864

Additional information

Weight 0.0120 kg
Dimensions
barcode
Additional Information

Connection code machine side: Straight shank
Internal cooling: Without
Norm: DIN 374
Surface: Steam tempered
Discount group: 103
Type: 2864
Cutting direction: Right-hand
Type: VA R40
Material: HSS-E
Additional information: Internal threading
Form: C
Coloured ring: Blue ring
Threads: MF
Tolerance class thread: ISO2/6H
Hole type: Blind hole
Groove: 40° right-hand helix
Chamfer lead length: 2-3
Code no.: 6.004
Weight: 0.012
No of cutting edges: 3
Total length: 80.000
Thread length: 8.000
Groove length: 26.000
Usable length: 30.000
Norm 2: DIN 2184-1
Wrench opening 1: 3.400
Core hole Ø: 5.20
Shank Ø: 4.500
Nominal dimension thread: M6 x 0.75
Pitch: 0.750
External Ø: 6.060
Reach length: 59.000
Statistical goods number: 82074010
